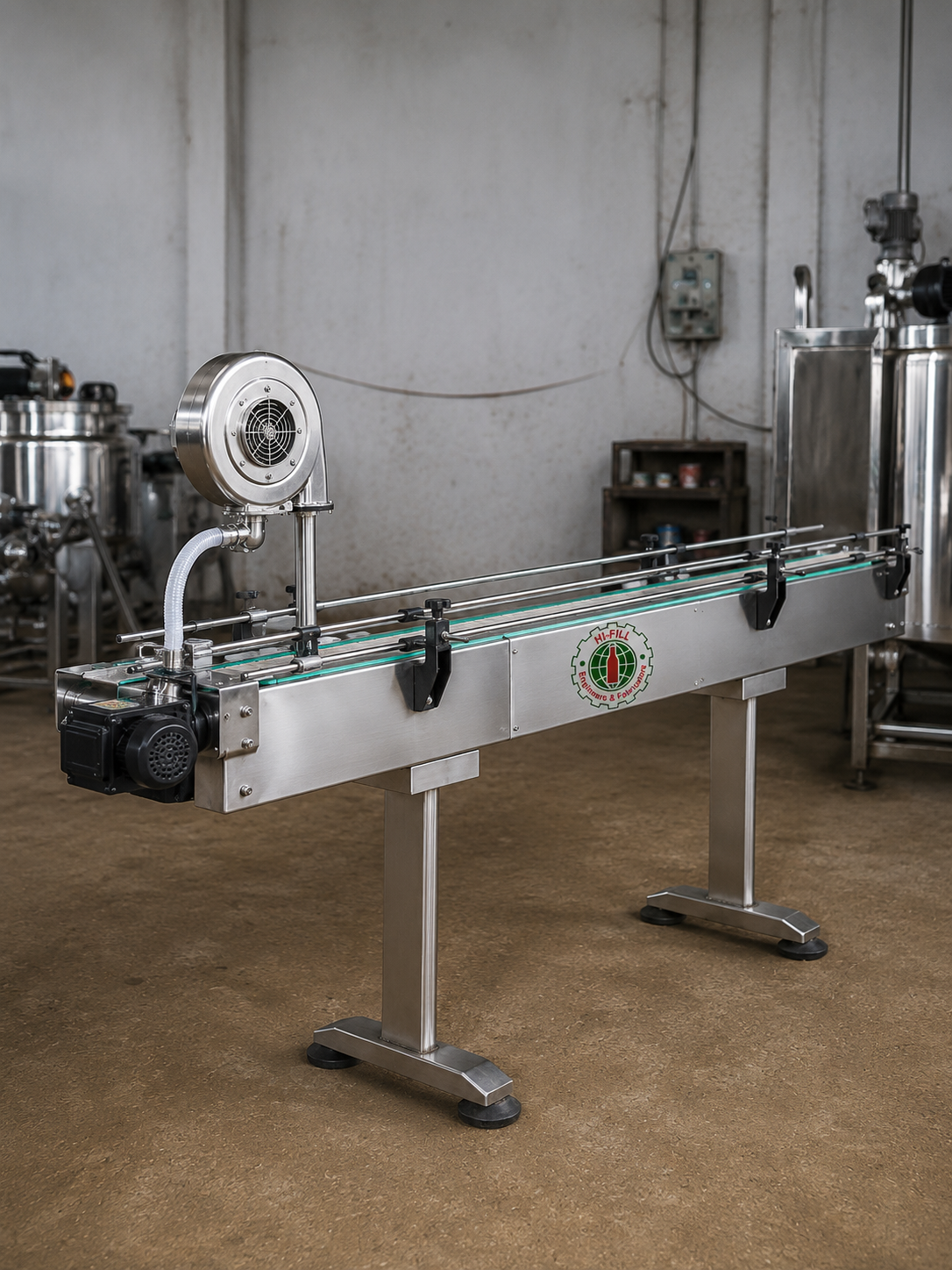

High-speed air conveyor systems for gentle, efficient transport of PET bottles, cans, and containers in beverage and food production lines. Designed for dust-free, low-maintenance operation with adjustable air velocity and VFD controls. Customizable for various bottle sizes and plant layouts, with capacities up to 1,500 bottles per minute.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Empty bottles are fed into the air conveyor system from the unscrambler or depalletizer. The infeed section is designed to align bottles smoothly and prevent jams.
High-velocity air from a blower is channeled through the conveyor track. Bottles are lifted and propelled along the track by the air stream, with adjustable air nozzles providing precise control over speed and spacing.
The system can convey bottles vertically or horizontally, with smooth curves and transitions to accommodate different plant layouts. Bottles are guided by side rails and overhead stabilizers.
Bottles are smoothly discharged onto the filler infeed conveyor at a controlled rate, maintaining consistent spacing to ensure efficient filling operations without bottle-to-bottle contact damage.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Conveying Capacity | Up to 1,500 bottles/min (Customizable) |
| Bottle Size Range | 200 ml - 2.5 L (Round, Square, Oval) |
| Conveying Height | 3 - 10 meters (Based on Layout) |
| Air Velocity | 15 - 30 m/s (Adjustable) |
| Material Construction | Stainless Steel 304 / 316L / Food-Grade Plastic |
| Blower Motor Power | 3.7 kW - 15 kW (Depending on Length) |
| Control System | Variable Frequency Drive (VFD) with PLC Integration |
| Compliance | CE Certified & Food-Safe Design |
| Key Features | Gentle Handling, Low Maintenance, Energy-Efficient, No Product Damage, Dust-Free Operation |
Submit your air conveyor system specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
