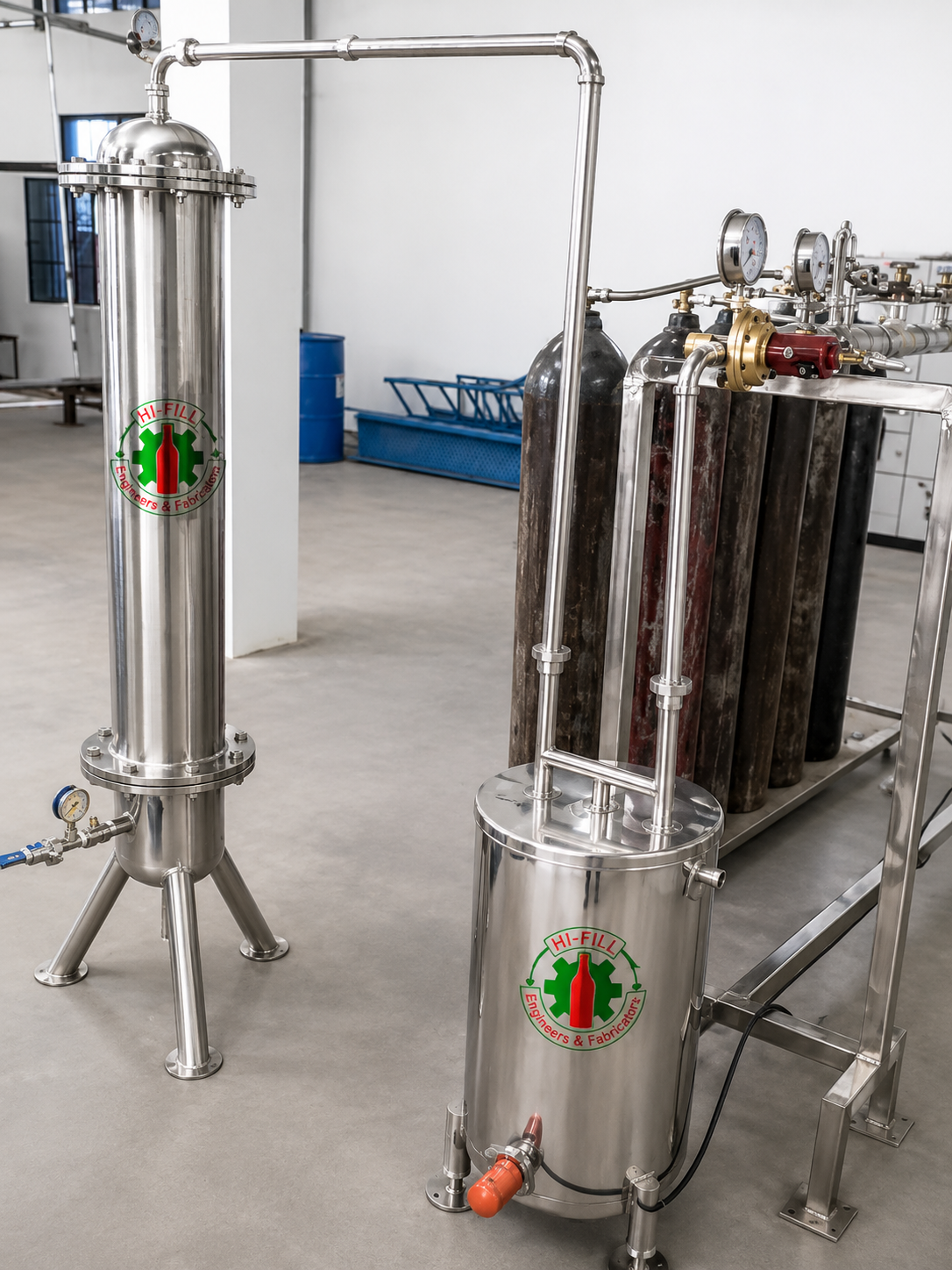

High-capacity, continuous CO2 gas supply solutions from New Delhi's trusted bottling experts. Our CO2 manifold systems are designed to aggregate gas from multiple cylinders, ensuring an uninterrupted and consistent flow of carbon dioxide for beverage carbonation, dispensing, and industrial processes.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
CO2 cylinders are connected to the manifold via high-pressure, flexible pigtails with integrated check valves. The manifold serves as a gas collector, aggregating supply from multiple cylinders to ensure a consistent and uninterrupted flow of CO2.
The collected high-pressure CO2 gas is passed through a primary pressure reducing valve station (e.g., RV100 type), which lowers the pressure to a usable level. For high flow rates, an electric preheater is incorporated to prevent the system from freezing and ensure consistent vaporization.
After regulation, the CO2 is delivered to the final line at a precise, controlled pressure. The manifold system may also include primary and secondary safety relief valves and pressure gauges to monitor system integrity and ensure safe operation.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| System Configuration | 2 x 5 to 2 x 30 CO2 Cylinders (Modular) |
| Maximum Capacity (All Cylinders) | 30 - 180 kg/hr |
| Maximum Inlet Pressure | Up to 200 bar (2900 PSI) |
| Maximum Outlet Pressure | Up to 15 bar (217 PSI) |
| Material Construction | Nickel-Plated Brass / Stainless Steel |
| Power Supply (for Preheater) | 380V, 50Hz, 3-Phase |
| Compliance | CE Certified |
| Key Features | Continuous Gas Supply, Safe Operation, Accurate Flow, Easy Installation, Low Maintenance |
Submit your CO2 manifold system specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
