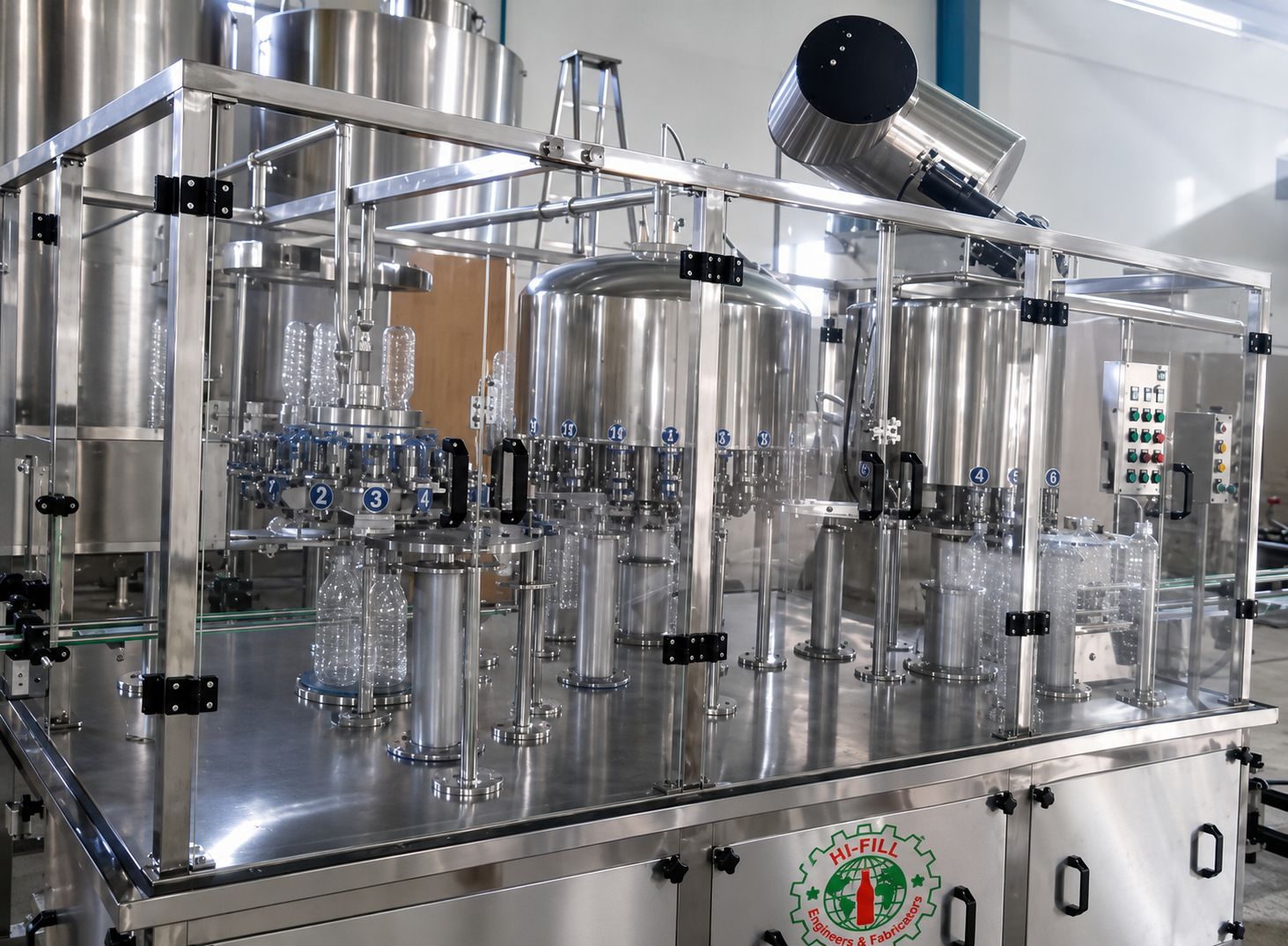

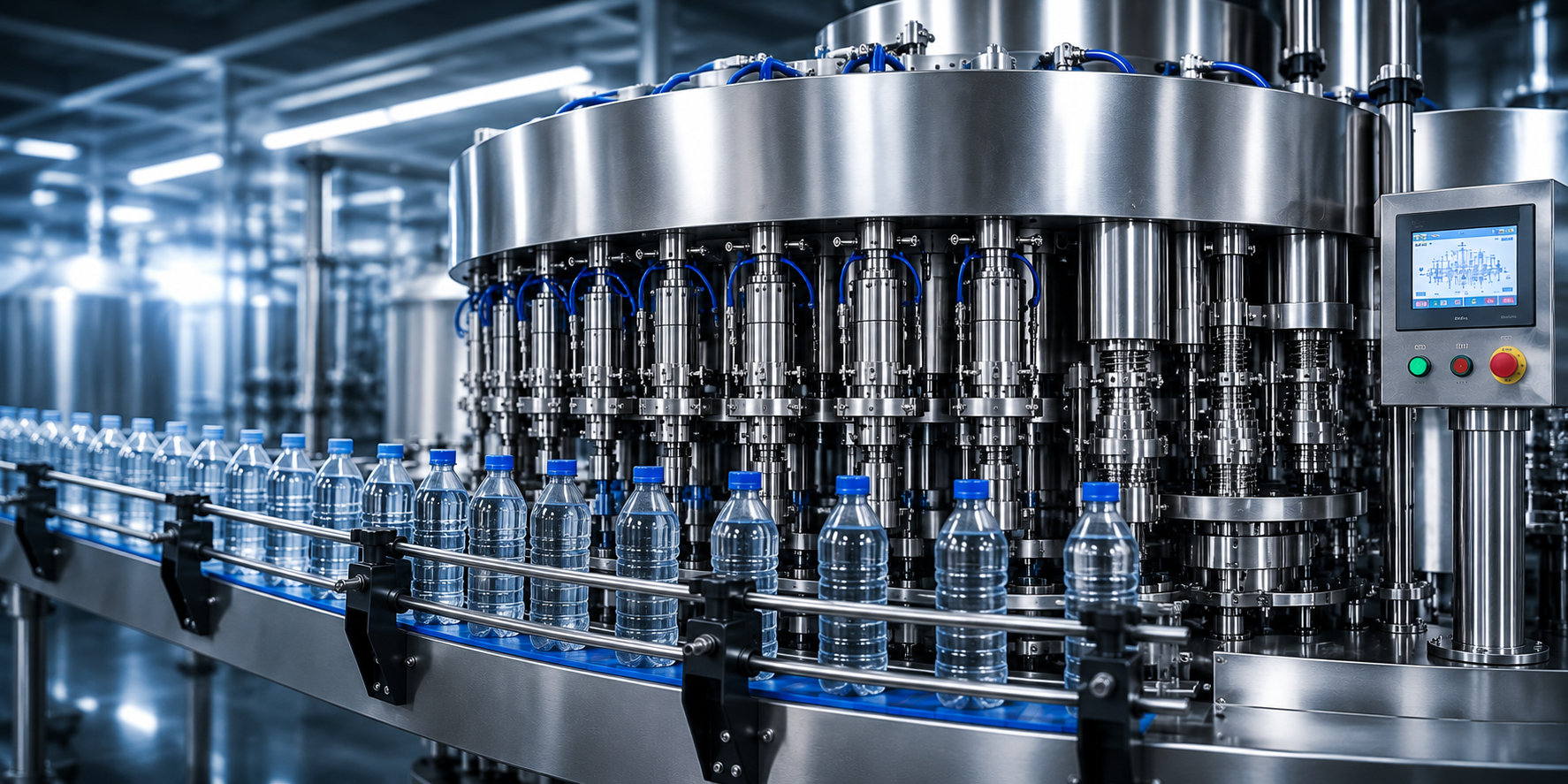

A high-performance, fully automatic 3-in-1 rotary monoblock system from New Delhi's leading bottling experts. Designed for high-speed, continuous production of carbonated drinks, juices, and water. The rotary design ensures maximum efficiency, precision, and hygiene in a compact footprint.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Bottles are fed into the rotary turntable, where they are inverted and rinsed internally with high-pressure water or sanitizing solution. The rotary design ensures continuous, high-speed operation and thorough cleaning.
Following rinsing, bottles move to the rotary filling station. Utilizing a precise volumetric or flow-meter filling system, each bottle is filled to the exact level at high speed, minimizing foam and spillage.
In the final rotary stage, caps are sorted and applied. The capping heads provide consistent torque, securely sealing each bottle to maintain product integrity and freshness.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Production Capacity | Up to 12,000 Bottles / Hour |
| Container Size Range | 200ml to 2L (PET/Glass) |
| Machine Dimensions | 4m x 2.5m x 2.2m (L x W x H) |
| Machine Weight | 1,500 kg |
| Material Construction | Stainless Steel (SS 304, Food Grade) |
| Power Supply | 380V, 50Hz, 3-Phase |
| Compliance | CE Certified |
| Automation Grade | Fully Automatic with PLC & HMI |
| Key Features | Rotary Turntable Design, High-Speed Operation, Precise Filling, Integrated Capping, Low Maintenance |
Submit your bottling specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
Established in 2005, Hi-Fill Engineers & Fabricators is a leading Exporter, Manufacturer, and Supplier of bottling plants and machinery based in New Delhi, India.
We specialize in turnkey solutions for Carbonated soft drinks, Soda bottling, Juice filling, Water bottling, Oil bottling, Beverages, Liquor, and Chemicals.
