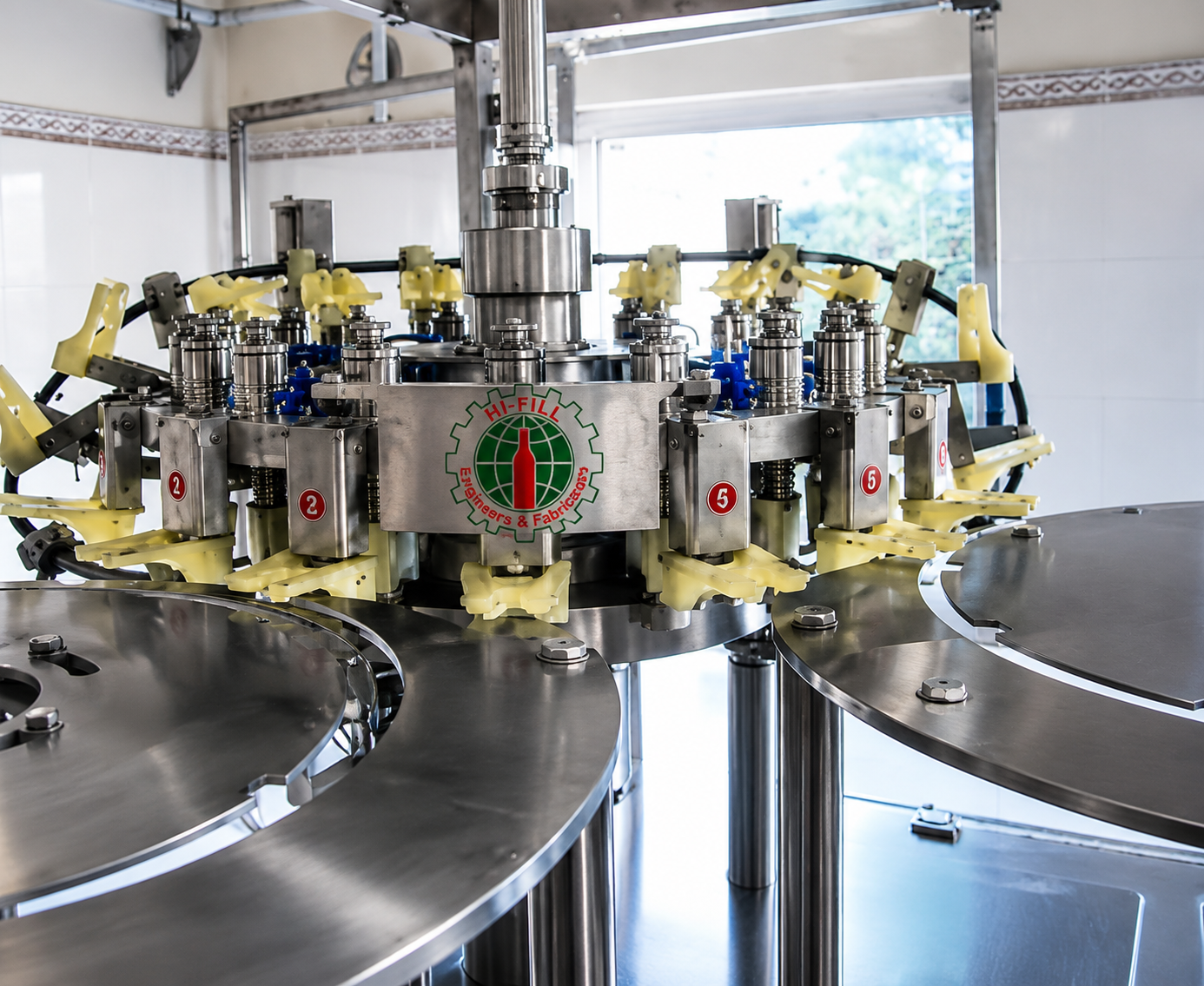

High-efficiency, fully automatic rinsing solutions from New Delhi's trusted bottling experts. Our rinser machines are designed to gently and effectively clean PET, glass, or plastic containers before filling. Built with stainless steel and featuring gentle handling systems, they are ideal for water, juice, soft drinks, liquor, and edible oils.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Bottles are fed into the machine via a conveyor system. They are oriented and separated using a starwheel mechanism, ensuring they are correctly positioned for the rinsing process.
The machine uses specially designed nozzles to direct a high-pressure jet of rinsing media (usually water or air) into the bottle interior, while external spray nozzles clean the exterior. This ensures complete removal of dust and contaminants.
After rinsing, the bottles are inverted briefly to allow all residual rinsing fluid to drain out completely. They are then uprighted and discharged onto the outfeed conveyor, ready for the filling line.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Production Capacity | Up to 500 - 1200 Bottles / Hour |
| Container Size Range | 200ml to 2.5L (PET / Glass / Plastic) |
| Machine Dimensions | 2.8m x 1.5m x 2.2m (L x W x H) |
| Machine Weight | 1,200 kg |
| Material Construction | Stainless Steel 304 |
| Power Supply | 380V, 50Hz, 3-Phase |
| Compliance | CE Certified |
| Automation Grade | Fully Automatic with PLC & HMI |
| Key Features | Gentle Bottle Handling, High Efficiency Rinsing, Interchangeable Parts, Low Maintenance, Suitable for Various Liquids |
Submit your container rinsing specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
Established in 2005, Hi-Fill Engineers & Fabricators is a leading Exporter, Manufacturer, and Supplier of bottling plants and machinery based in New Delhi, India.
We specialize in turnkey solutions for Carbonated soft drinks, Soda bottling, Juice filling, Water bottling, Oil bottling, Beverages, Liquor, and Chemicals.
