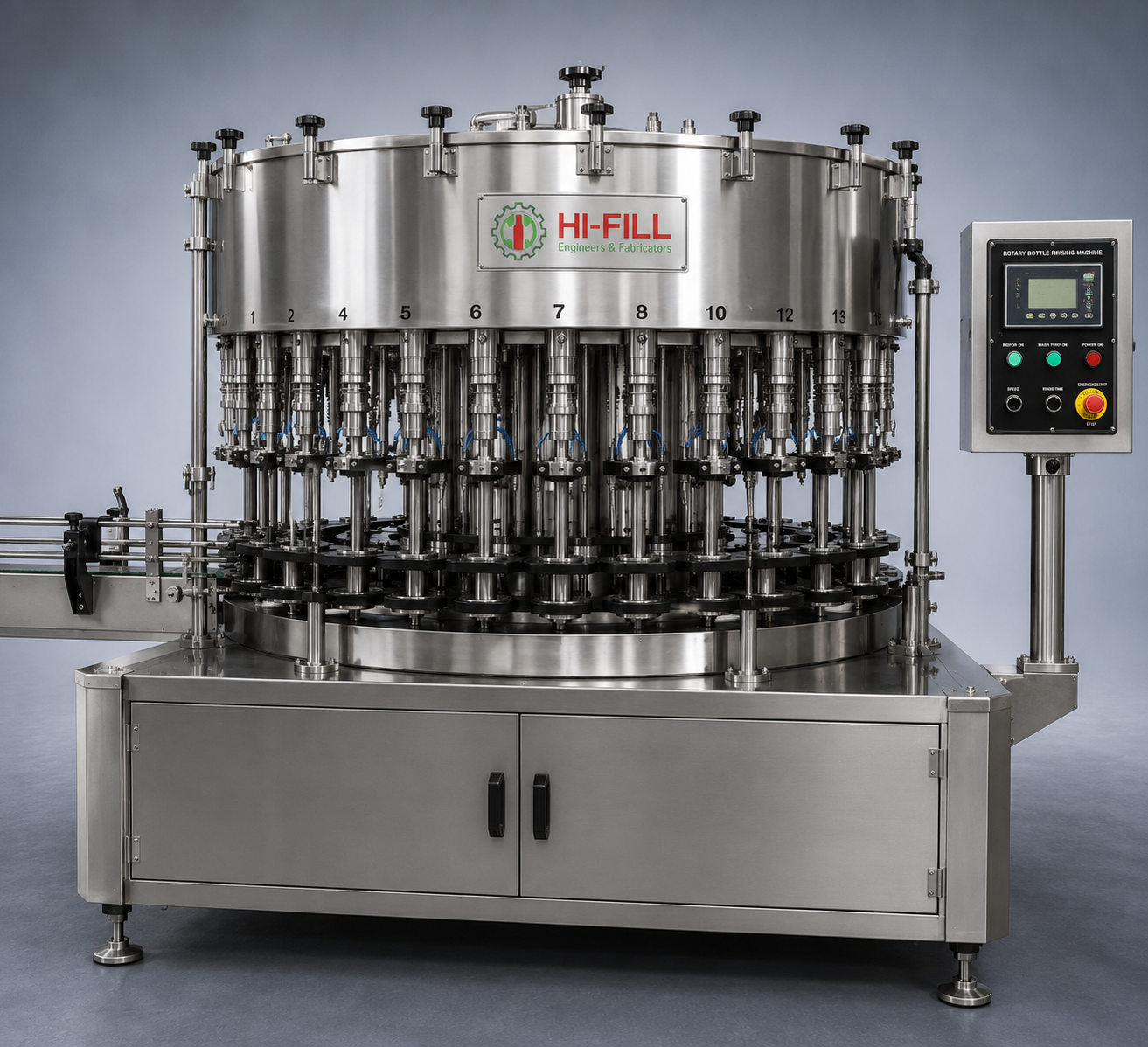

Our Rotary Bottle Rinsing Machine is a high-performance, continuous-motion rinsing solution designed for the efficient cleaning and sanitization of containers before filling. The machine's rotary design ensures high-speed operation and thorough treatment of both PET and glass bottles. [citation:3] The system can be customized for various treatment cycles, combining single or multiple treatments with different fluids such as air, water, steam, and sterilizing solutions. The variable treatment times and "no bottle-no spray" mechanism ensure effective rinsing with minimal consumption. [citation:3] Featuring a simple, reliable mechanical structure and easy fast format changeovers, our rotary rinser can handle a very wide range of bottle shapes and sizes. The optional use of specialized grippers allows for the processing of both light and heavy containers. [citation:3]
Machine Type
Rotary
Automation
Fully Automatic
Container Type
PET / Glass
Treatment
Air / Water / Steam
A single rinsing stage with a chosen fluid (e.g., water, air, or a sterilizing agent) for basic cleaning.
An initial spray with a sterilizing product (e.g., chlorine, ozone, oxonia) followed by a final rinse with water. This cycle often includes a recovery and recycling tank between stages to reduce consumption. [citation:3]
A complete bottle treatment process that includes internal/external deionizing treatment and blowing with sterile air. This method uses no water, has shorter treatment times, and is ideal for applications like mineral water and soft drinks. [citation:3]
For hot fill lines in glass bottles, the rinser can be used with the filler or as a preheater for the bottles. Internal injection and external spray of steam or hot water are used to avoid thermal shock. [citation:3]
| Parameter | Specification |
|---|---|
| Machine Type | Rotary, Continuous Motion |
| Container Handling | PET and Glass Bottles [citation:3] |
| Treatment Fluids | Air, Water, Steam, Sterilizing Solutions [citation:3] |
| Treatment Cycles | Customizable (Single or Multiple) [citation:3] |
| Bottle Gripper Type | Stainless Steel with Plastic Inserts [citation:3] |
| Nozzle Type | Fixed or Mobile (Penetrating) [citation:3] |
| Key Options | Water Recycling System, Preparation and Dosing System for Sterilizing Solutions [citation:3] |
| Power Supply | 380V, 50Hz, 3-Phase |
| Construction Material | Stainless Steel (Food Grade) |
| Automation Grade | Fully Automatic with PLC & HMI |
Contact our team today for a custom quote and technical consultation for your bottle rinsing requirements.
