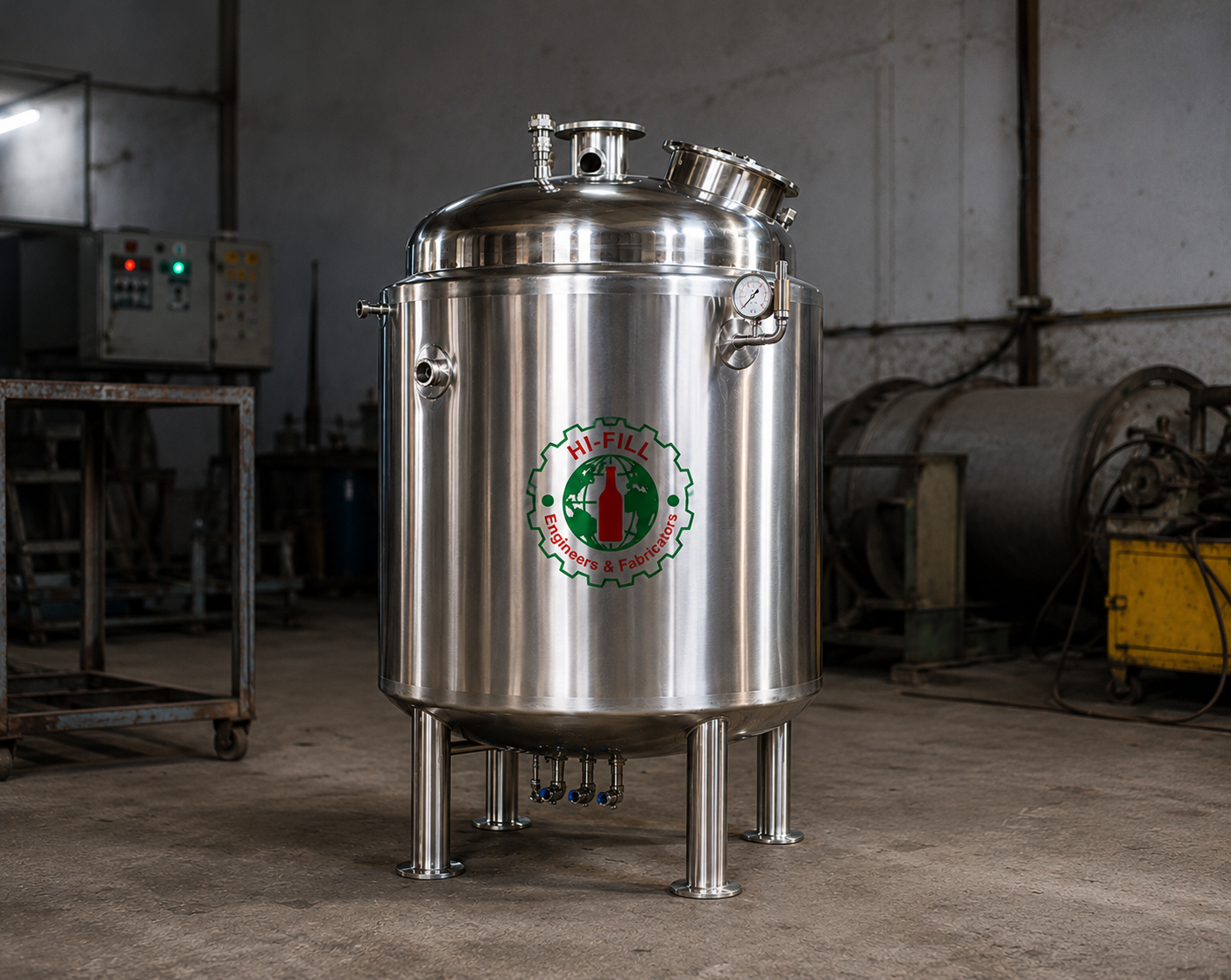

High-efficiency sugar melting tanks for precise syrup preparation in the beverage and food industry. Manufactured from food-grade stainless steel with heating jackets and scraper agitators, our tanks ensure complete dissolution of sugar crystals while preventing caramelization. Ideal for producing syrups for soft drinks, juices, and confectionery products. Customizable capacities from 200L to 10,000L.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Granulated sugar and water (in precise ratios) are loaded into the tank. The mixture is typically prepared to achieve a target concentration of 65-70°Brix for beverage syrups. The tank's design allows for easy loading through a manhole or top inlet.
The jacket is filled with steam or hot water, raising the temperature to 60-80°C. Simultaneously, the agitator (anchor or scraper type) rotates continuously to dissolve sugar crystals completely and prevent them from settling or burning on the heated surfaces. The scraper design is particularly effective in preventing caramelization.
Once the sugar is fully dissolved and the syrup reaches the desired Brix level and temperature, it is held for a short period to ensure consistency. The finished syrup is then pumped out through a sanitary valve to the mixing tank or downstream process.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Tank Capacity | 200L - 10,000L (Customizable) |
| Operating Temperature | 60°C - 80°C (140°F - 176°F) |
| Heating Method | Steam Jacket / Electric Heating / Hot Water |
| Sugar Concentration | 65° - 70° Brix (Typical Syrup) |
| Material Construction | Stainless Steel 304 / 316L (Food Grade) |
| Insulation | Mineral Wool / PUF with SS Cladding |
| Agitation Type | Anchor / Paddle / Scraper Agitator |
| Surface Finish | Internal: 0.8 Ra / External: 2B or Matte |
| Compliance | CE Certified |
| Key Features | Efficient Sugar Dissolution, Uniform Heating, CIP-Compatible, Scraper Agitator Prevents Caramelization, Temperature Control System |
Submit your sugar melting tank specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
