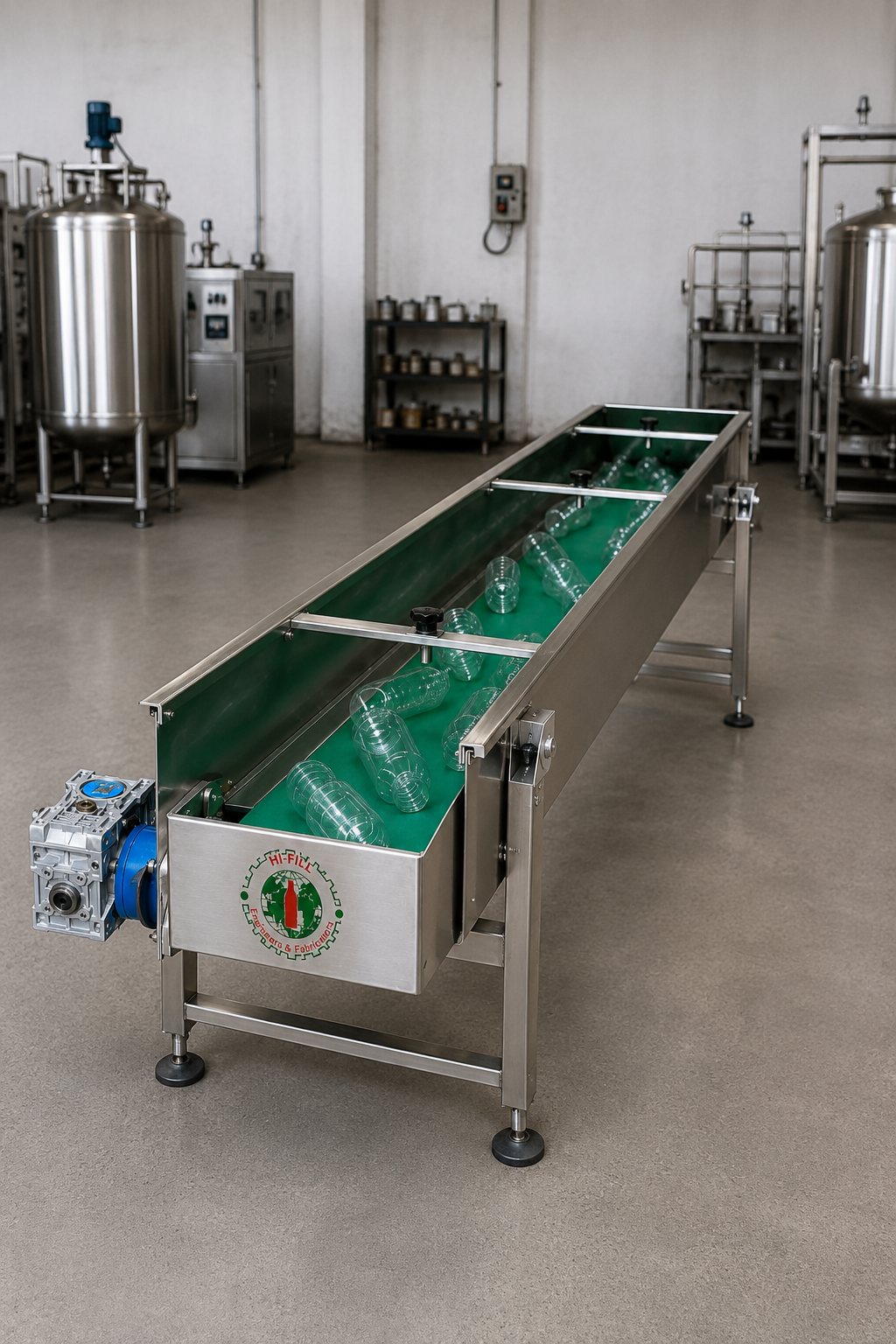

Versatile belt conveyor systems for efficient transport of bottles, cartons, pouches, and other products across your production line. Available in flat belt, modular, cleated, and inclined configurations. Designed for gentle handling, low maintenance, and easy cleaning, with VFD controls for precise speed management. Customizable widths, lengths, and elevations to fit any plant layout.
Price
₹ 700,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Products are loaded onto the conveyor belt at the infeed section. The belt's surface and side guides ensure stable positioning for various package types including bottles, cartons, and pouches.
The belt moves products through the production line at a controlled speed. The system can include accumulation zones to buffer products between different machines (e.g., filler, capper, labeler, packer).
The conveyor can be configured with inclines, declines, and curves to navigate different plant layouts. Cleated or textured belts ensure stable product movement even on slopes.
Products are smoothly discharged onto the next piece of equipment (e.g., packaging line, palletizer, or storage area) at a controlled rate, maintaining consistent spacing for efficient downstream operations.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Conveyor Type | Flat Belt / Modular / Cleated / Inclined |
| Conveying Capacity | Variable (Up to 2,000 units/min) |
| Belt Material | PVC / PU / Rubber / Stainless Steel Mesh |
| Frame Material | Stainless Steel 304 / 316L / Mild Steel |
| Belt Width | 100 mm - 1,200 mm (Customizable) |
| Conveyor Length | Customizable (2 - 50+ meters) |
| Motor Power | 0.37 kW - 7.5 kW (Depending on Load) |
| Speed Control | Variable Frequency Drive (VFD) Standard |
| Compliance | CE Certified & Food-Safe Design |
| Key Features | Gentle Product Handling, Modular Design, Low Maintenance, Easy Cleaning, Customizable Elevation |
Submit your belt conveyor system specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
Established in 2005, Hi-Fill Engineers & Fabricators is a leading Exporter, Manufacturer, and Supplier of bottling plants and machinery based in New Delhi, India.
We specialize in turnkey solutions for Carbonated soft drinks, Soda bottling, Juice filling, Water bottling, Oil bottling, Beverages, Liquor, and Chemicals.
