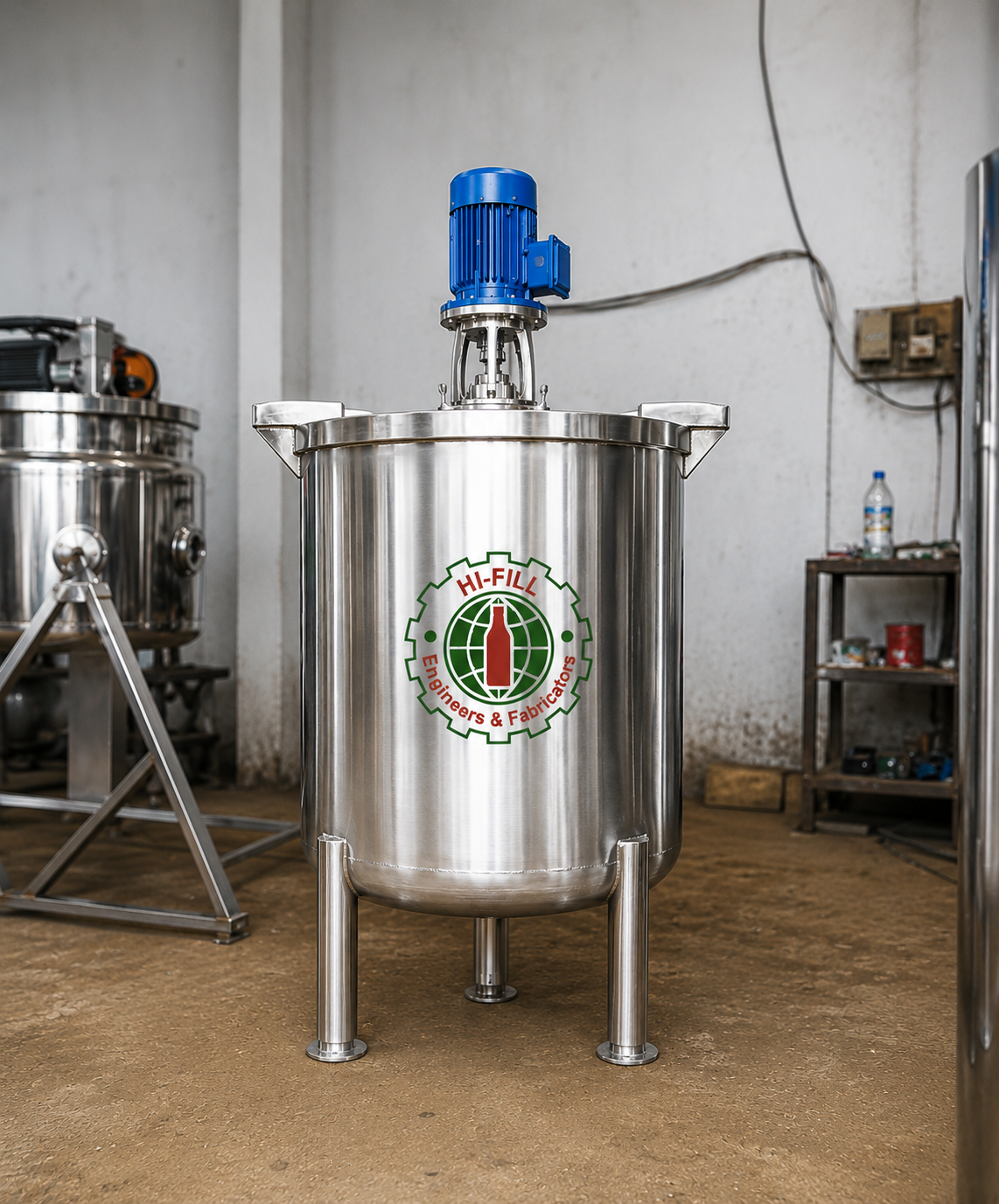

High-performance mixing tanks for homogeneous blending of liquids, powders, and semi-solids in the beverage, food, and pharmaceutical industries. Manufactured from food-grade stainless steel with customizable agitators (anchor, paddle, propeller, or turbine) and variable speed drives. Optional heating/cooling jackets available for temperature-controlled applications. Capacities from 100L to 20,000L.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Liquids, powders, and other ingredients are loaded into the mixing tank through the top inlet or manhole. The tank's design allows for easy loading and prevents spillage.
The agitator (anchor, paddle, propeller, or turbine type) rotates at a controlled speed to blend ingredients thoroughly. Variable speed drives allow for gentle or high-shear mixing as required. Baffles prevent vortex formation and ensure homogeneous mixing.
For temperature-sensitive applications, the mixing tank can be equipped with a heating or cooling jacket. Steam, hot water, or chilled water circulates through the jacket to maintain precise temperature control during mixing.
Once the mixing process is complete, the homogeneous mixture is discharged through a sanitary bottom valve. The product is then transferred to the next process stage (filling, bottling, or storage).
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Tank Capacity | 100L - 20,000L (Customizable) |
| Mixing Speed | 10 - 1,500 RPM (Variable Speed Drive) |
| Agitator Type | Anchor / Paddle / Propeller / Turbine / Scraper |
| Material Construction | Stainless Steel 304 / 316L (Food Grade) |
| Surface Finish | Internal: 0.8 Ra / External: 2B or Matte |
| Heating/Cooling | Optional Jacket / Coil (Steam, Water, or Thermal Oil) |
| Motor Power | 0.37 kW - 15 kW (Depending on Capacity) |
| Compliance | CE Certified |
| Key Features | Homogeneous Blending, CIP-Compatible, Variable Speed Control, Temperature Monitoring, Customizable Baffles |
Submit your mixing tank specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
