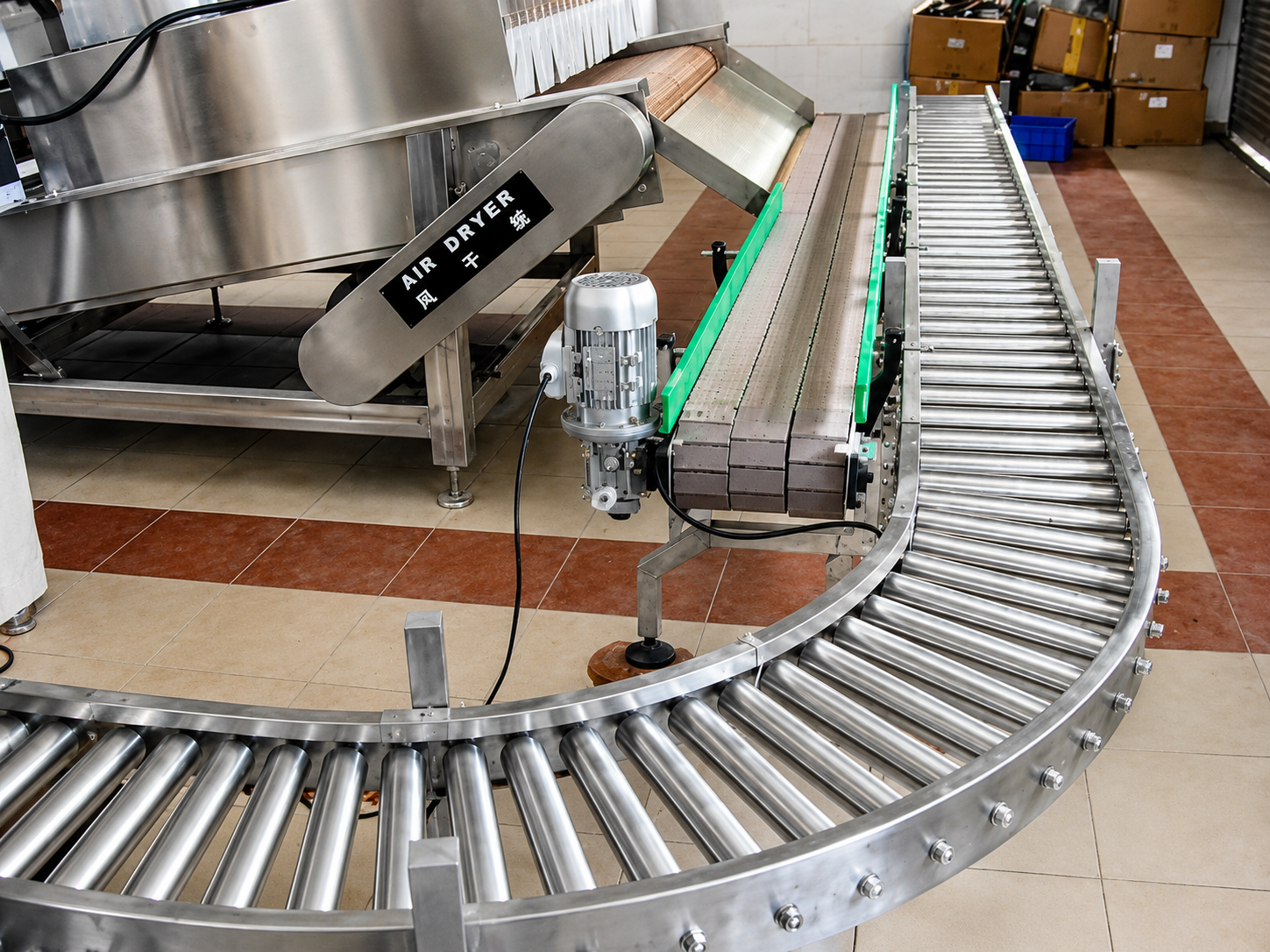

Energy-efficient gravity roller bends for smooth direction changes in material handling systems. Available in 45°, 90°, and 180° configurations with tapered rollers to maintain product orientation. Designed for cartons, crates, totes, and other packaged goods. Constructed from stainless steel or mild steel with durable roller options for long-lasting, maintenance-free operation.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Products (cartons, crates, totes) enter the gravity roller bend from a straight conveyor section. The curved design allows for smooth product flow without the need for powered rollers.
Products are propelled through the curve by gravity, utilizing a slight decline or the momentum from the infeed section. The roller configuration ensures smooth, controlled movement around the bend.
The bend changes the direction of product flow by the specified angle (typically 45°, 90°, or 180°). The tapered roller design ensures that products maintain proper orientation throughout the curve.
Products are smoothly discharged from the bend onto the next conveyor section (e.g., straight roller conveyor, belt conveyor, or accumulation table) at a controlled rate for efficient downstream operations.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Type | Gravity Roller Bend / Curve |
| Roller Material | Stainless Steel 304 / 316L / Galvanized Steel |
| Frame Material | Stainless Steel 304 / 316L / Mild Steel |
| Roller Diameter | 38 mm - 76 mm (Customizable) |
| Roller Pitch | 50 mm - 150 mm (Based on Product Size) |
| Curve Angle | 45° / 90° / 180° (Customizable) |
| Curve Radius | 600 mm - 2,000 mm (Based on Product Size) |
| Width | 200 mm - 1,200 mm (Customizable) |
| Load Capacity | Up to 50 kg per roller (Customizable) |
| Key Features | Energy-Free Operation, Smooth Product Flow, Durable Construction, Low Maintenance, Easy Integration |
Submit your gravity roller bend specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
