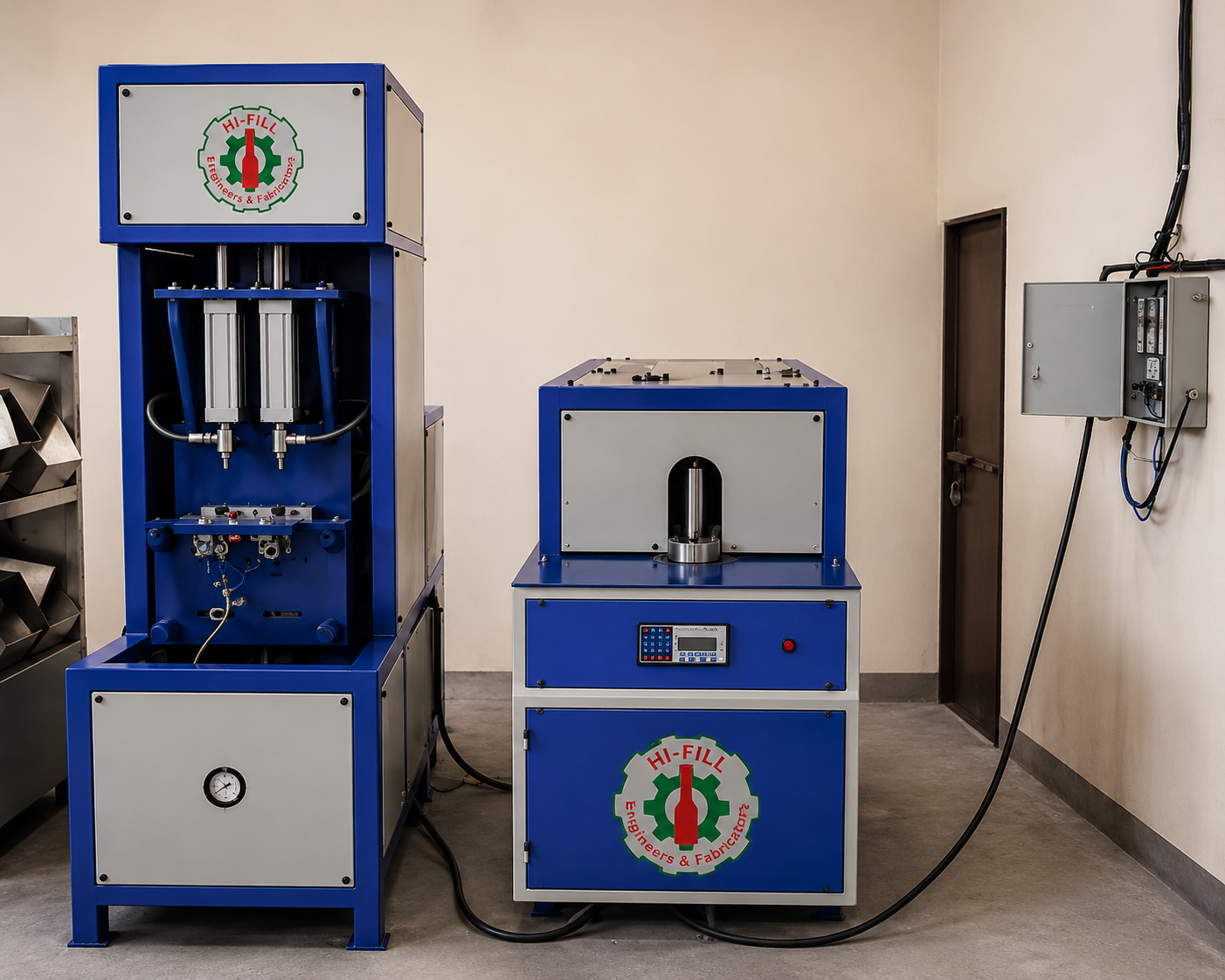

Integrated preform heating and blow molding solution from New Delhi's trusted bottling experts. Our machine combines a multi-zone infrared heating oven with a high-speed blow molding system, ensuring precise temperature control and efficient bottle production for carbonated soft drinks, water, juices, and edible oils.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
PET preforms are loaded into the machine's hopper and fed into the heating oven via a conveyor system. Preforms are oriented and separated to ensure consistent spacing for uniform heating.
Preforms pass through a multi-zone infrared heating oven where they are heated to the optimal temperature for blow molding (typically 90-110°C). The integrated heater system provides precise temperature control across zones, ensuring consistent material properties. An internal air circulation system ensures even heat distribution.
Heated preforms are transferred into the blow mold. A servo-driven stretch rod elongates the preform vertically while high-pressure compressed air (25-35 bar) is injected to expand it against the mold walls, taking the shape of the final bottle.
The newly formed bottle is cooled within the mold to set its shape and dimensions. The mold opens, and the finished bottle is ejected onto a conveyor system, ready for the next stage of the bottling line.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Production Capacity | Up to 2,000 - 3,500 Bottles / Hour |
| Container Size Range | 200ml to 2.5L (PET) |
| Preform Heating Zones | 3-5 Zone Infrared Oven with Temperature Control |
| Blowing Pressure | 25 - 35 Bar |
| Machine Dimensions | 4.2m x 2.8m x 2.5m (L x W x H) |
| Machine Weight | 5,500 kg |
| Material Construction | Stainless Steel & High-Grade Alloy |
| Power Supply | 380V, 50Hz, 3-Phase |
| Compliance | CE Certified |
| Automation Grade | Fully Automatic with PLC & HMI |
| Key Features | Integrated Heating System, Energy Efficient, Precise Temperature Control, Servo-Driven Stretch, Quick Mold Change, Low Maintenance |
Submit your PET bottle production specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
Established in 2005, Hi-Fill Engineers & Fabricators is a leading Exporter, Manufacturer, and Supplier of bottling plants and machinery based in New Delhi, India.
We specialize in turnkey solutions for Carbonated soft drinks, Soda bottling, Juice filling, Water bottling, Oil bottling, Beverages, Liquor, and Chemicals.
