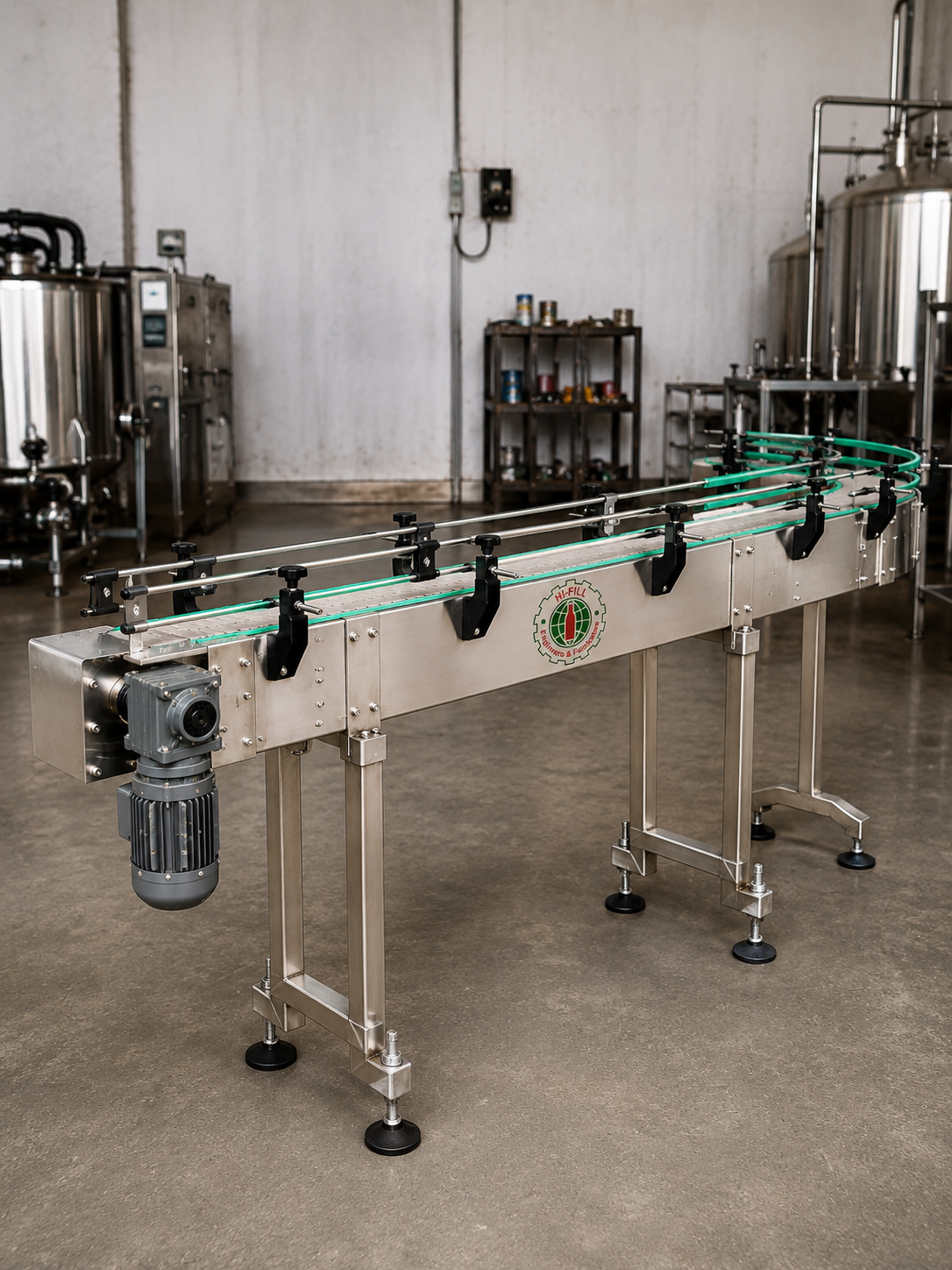

Reliable bottle conveyor systems for efficient transport of PET, glass, and other containers across your production line. Available in belt, slat, roller, plastic chain, and air conveyor types. Designed for gentle handling, low maintenance, and easy cleaning, with VFD controls for precise speed management. Customizable lengths, widths, and elevations to fit any plant layout.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Bottles are fed onto the conveyor from the unscrambler or depalletizer. The infeed section is designed with guide rails to align bottles smoothly and prevent jams, ensuring a consistent flow.
The conveyor moves bottles through the production line at a controlled speed. The system can include accumulation tables or buffers to manage bottle flow between different machines (e.g., filler, capper, labeler).
The conveyor can be configured with inclines, declines, and curves to navigate different plant layouts. Positive-drive belts or chains ensure stable bottle movement even on slopes.
Bottles are smoothly discharged onto the next piece of equipment (e.g., filler infeed, capper, or packaging line) at a controlled rate, maintaining consistent spacing for efficient downstream operations.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Conveyor Type | Belt / Slat / Roller / Plastic Chain / Air |
| Conveying Capacity | Up to 2,000 bottles/min (Customizable) |
| Bottle Size Range | 200 ml - 5 L (Round, Square, Oval) |
| Conveyor Length | Customizable (2 - 50+ meters) |
| Width | 50 mm - 600 mm (Adjustable Guide Rails) |
| Material Construction | Stainless Steel 304 / 316L / Food-Grade Plastic |
| Motor Power | 0.37 kW - 5 kW (Depending on Load) |
| Control System | Variable Frequency Drive (VFD) with PLC Integration |
| Compliance | CE Certified & Food-Safe Design |
| Key Features | Gentle Bottle Handling, Modular Design, Low Maintenance, Easy Cleaning, Customizable Elevation |
Submit your bottle conveyor system specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
Established in 2005, Hi-Fill Engineers & Fabricators is a leading Exporter, Manufacturer, and Supplier of bottling plants and machinery based in New Delhi, India.
We specialize in turnkey solutions for Carbonated soft drinks, Soda bottling, Juice filling, Water bottling, Oil bottling, Beverages, Liquor, and Chemicals.
