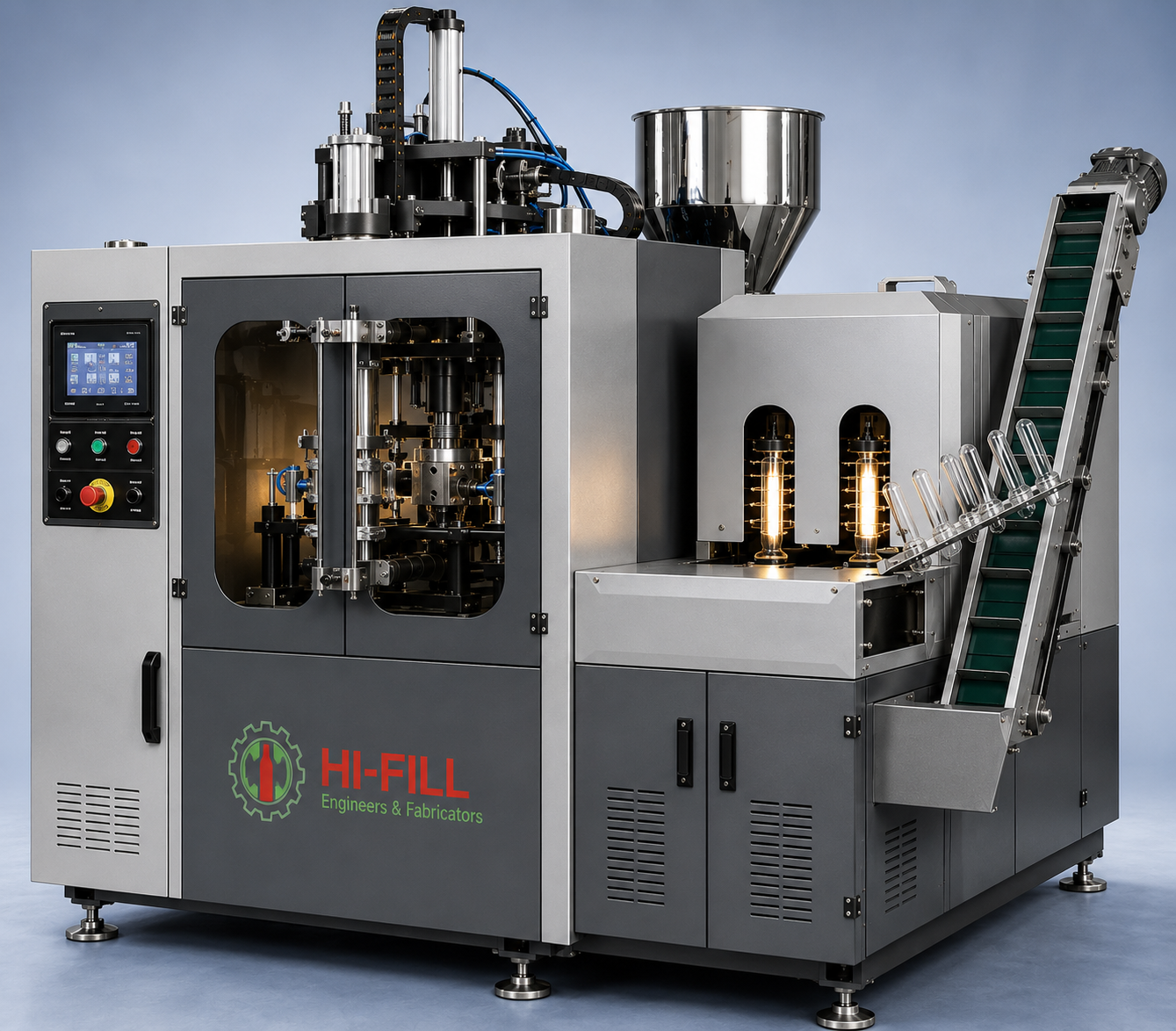

Our PET Bottle Blowing Machine is a high-performance stretch blow molding solution designed for the efficient production of high-quality PET bottles. The machine features advanced heating and blowing technology that ensures consistent material distribution and superior bottle quality. Available in both automatic and semi-automatic configurations, our PET blowing machines are engineered for reliability, energy efficiency, and ease of operation. The system incorporates servo-driven mechanisms, precise temperature control, and intelligent PLC automation to deliver exceptional performance with minimal maintenance. Ideal for beverage, pharmaceutical, and personal care industries, our PET bottle blowing machines offer fast changeover times, low energy consumption, and the flexibility to produce a wide range of bottle sizes and shapes.
Capacity
1,500 - 12,000 BPH
Automation
Fully Automatic with PLC & HMI
Voltage
380V, 50Hz, 3-Phase
Material
Aluminum Alloy / Stainless Steel
Multi-zone infrared heating with adjustable lamps for consistent preform temperature and energy efficiency.
Premium valve system for precise air delivery, uniform bottle expansion, and minimal air leakage.
Intelligent touchscreen interface with real-time monitoring, diagnostics, and precise parameter control.
| Parameter | Specification |
|---|---|
| Production Capacity | 1,500 - 12,000 Bottles/Hour |
| Cavities | 2 - 9 Cavities |
| Bottle Volume Range | 100ml to 20L |
| Max Bottle Height | 340mm |
| Max Bottle Diameter | 130mm |
| Machine Dimensions | 3.47m x 1.9m x 2.2m (L x W x H) |
| Machine Weight | 2,500 - 5,000 kg |
| Power Supply | 380V, 50Hz, 3-Phase |
| Action Pressure | 0.8 MPa |
| Blow Pressure | 3.0 MPa |
| Heating Power | 44 - 120 kW |
| Compliance | CE Certified |
Contact our team today for a custom quote and technical consultation for your PET bottle blowing requirements.
