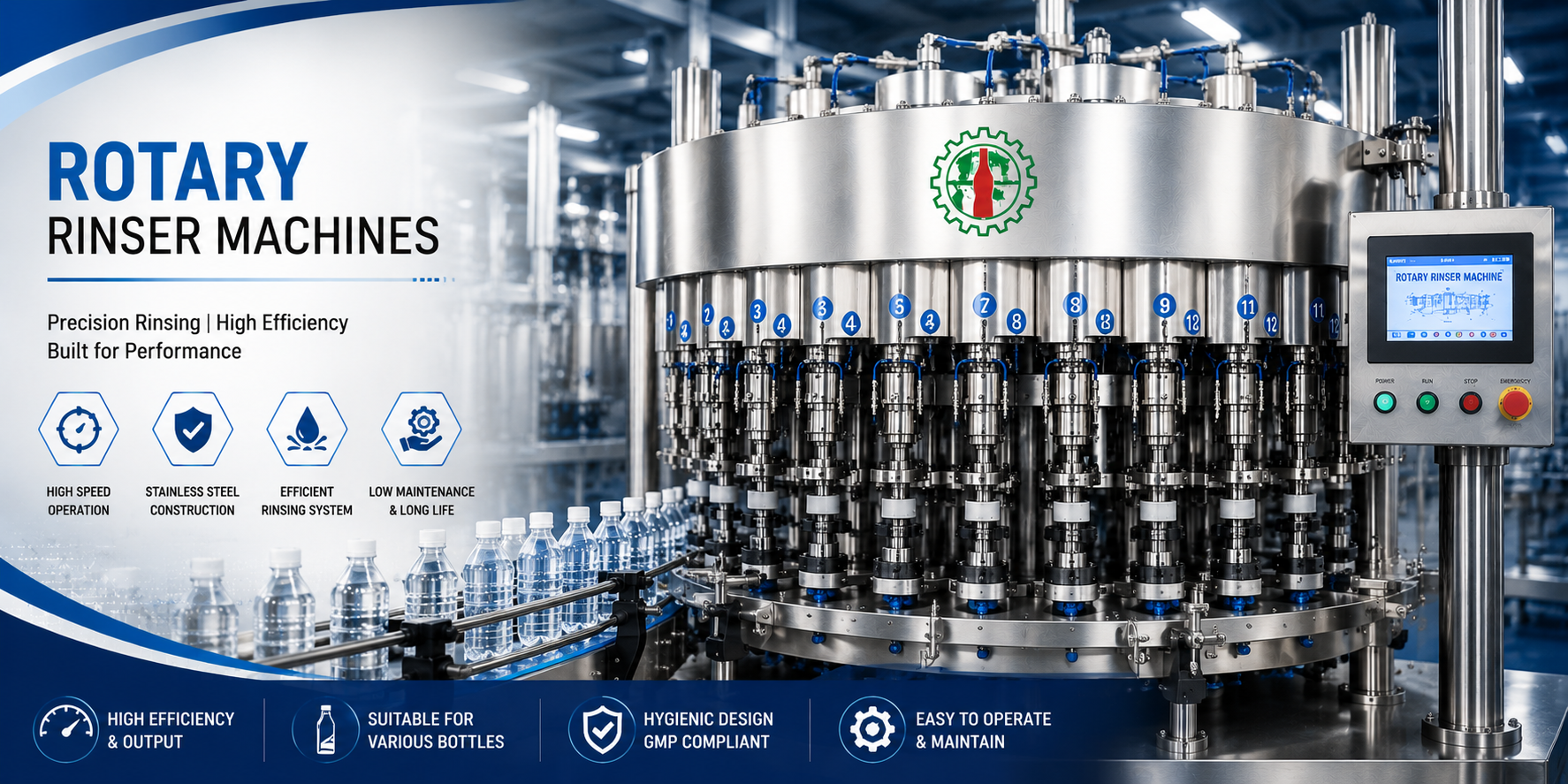

Upgrade your bottling line with New Delhi's trusted experts. As premier Rotary Rinser Machines Manufacturers in Delhi, we deliver high-speed, continuous rotary rinsing solutions designed for high-volume production. Our machines feature a robust carousel design, precise nozzles, and CIP compatibility to provide efficient, gentle cleaning for PET and glass containers—ensuring maximum hygiene and minimal downtime for water, juice, and soft drink applications.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order

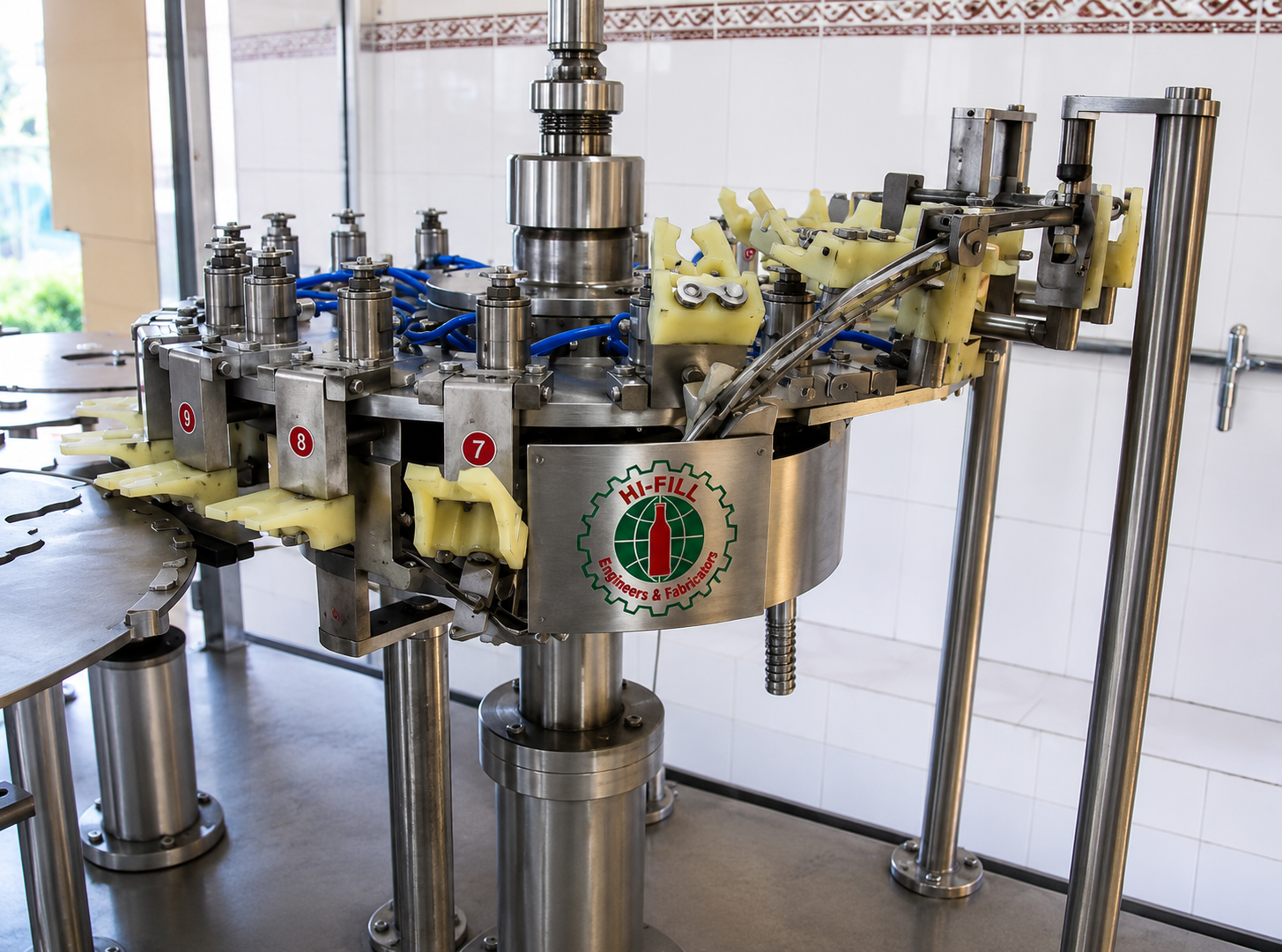

Bottles are fed onto the rotary rinser via a synchronized infeed conveyor. A starwheel mechanism gently guides and loads each bottle into the machine's rotating carousel holders, ensuring smooth, continuous operation without stops.
As the carousel rotates, bottles are inverted and pass over a series of specially positioned nozzles. High-pressure rinsing media (treated water, air, or sanitizing solution) is injected internally, while external sprays clean the container's exterior. The rotary action allows for multiple, sequential rinsing stages within a compact footprint.
After the rinsing cycle, bottles are re-inverted to drain completely. They are then gently guided out of the carousel by an outfeed starwheel and placed onto the discharge conveyor, perfectly synchronized for the next filling or capping operation.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Production Capacity | Up to 2,000 - 6,000 Bottles / Hour |
| Container Size Range | 200ml to 2.5L (PET / Glass / Plastic) |
| Number of Rinsing Heads | 12, 18, 24, 32 (Customizable) |
| Machine Dimensions | 3.2m x 2.8m x 2.5m (L x W x H) |
| Machine Weight | 2,500 kg |
| Material Construction | Stainless Steel 304 |
| Power Supply | 380V, 50Hz, 3-Phase |
| Compliance | CE Certified |
| Key Features | Continuous Rotary Motion, High-Speed Operation, Precise Nozzle Positioning, Gentle Bottle Handling, CIP Compatible, Low Maintenance |
Submit your high-speed container rinsing specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
Established in 2005, Hi-Fill Engineers & Fabricators is a leading Exporter, Manufacturer, and Supplier of bottling plants and machinery based in New Delhi, India.
We specialize in turnkey solutions for Carbonated soft drinks, Soda bottling, Juice filling, Water bottling, Oil bottling, Beverages, Liquor, and Chemicals.
