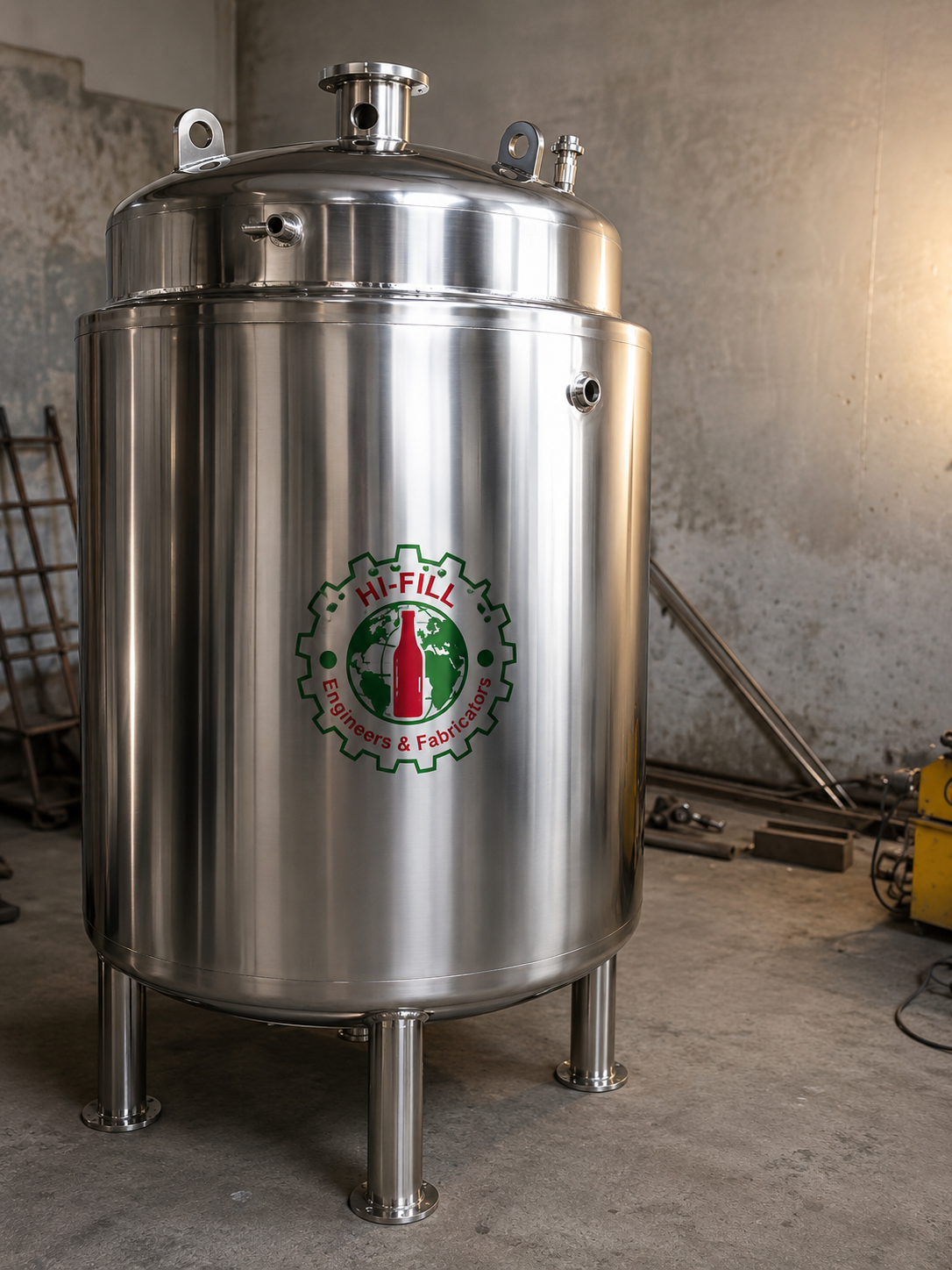

High-quality steam jacketed tanks for precise temperature control and efficient heating of liquids, syrups, and food products. Manufactured from food-grade stainless steel with insulated jacketed designs, our tanks are ideal for pasteurization, cooking, and mixing applications in beverage, dairy, and confectionery industries. Customizable capacities from 100L to 20,000L.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Liquids, syrups, or food products are loaded into the tank. Steam (or other thermal media) is introduced into the outer jacket, transferring heat evenly to the contents. The insulation minimizes heat loss, ensuring efficient operation.
Integrated temperature sensors (PT100/RTD) monitor the product temperature, interfacing with a PLC or temperature controller. For applications requiring mixing, an optional agitator (anchor/paddle/scraper) ensures uniform heating and prevents scorching.
Once the product reaches the desired temperature, it can be held for a specified time for pasteurization or reaction. The heated product is then discharged through a sanitary valve, ready for the next process stage (filling, bottling, or storage).
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Tank Capacity | 100L - 20,000L (Customizable) |
| Operating Temperature | Up to 150°C (302°F) |
| Operating Pressure (Jacket) | Up to 10 Bar (145 PSI) |
| Material Construction | Stainless Steel 304 / 316L (Food Grade) |
| Insulation | Mineral Wool / PUF with Cladding |
| Heating Media | Steam / Hot Water / Thermal Oil |
| Surface Finish | Internal: 0.8 Ra / External: 2B or Matte |
| Compliance | CE Certified / ASME (Optional) |
| Key Features | Uniform Heating, CIP-Compatible, Dimpled or Conventional Jacket, Insulated for Energy Efficiency |
Submit your steam jacketed tank specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
Established in 2005, Hi-Fill Engineers & Fabricators is a leading Exporter, Manufacturer, and Supplier of bottling plants and machinery based in New Delhi, India.
We specialize in turnkey solutions for Carbonated soft drinks, Soda bottling, Juice filling, Water bottling, Oil bottling, Beverages, Liquor, and Chemicals.
