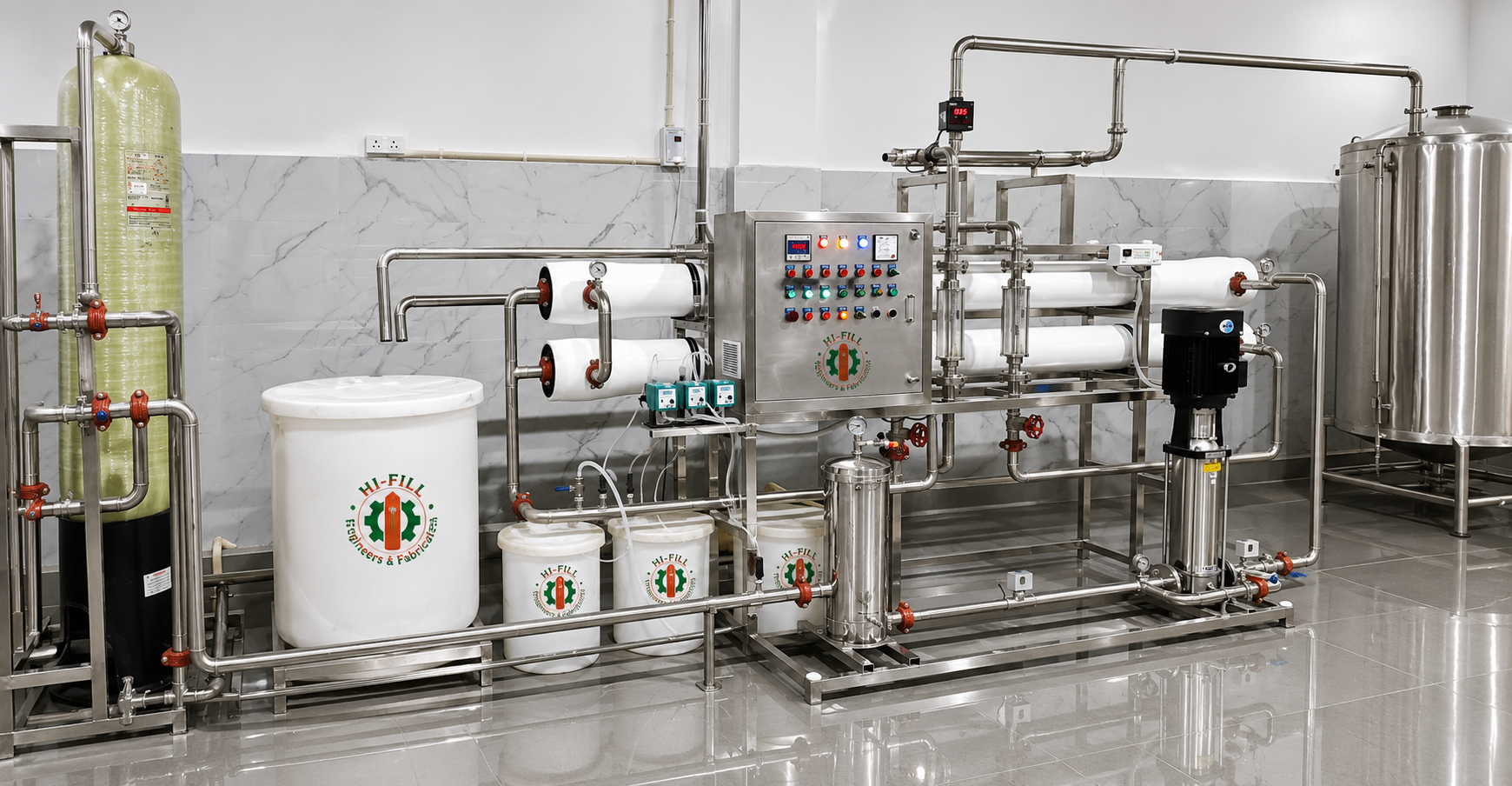

High-quality reverse osmosis water treatment solutions from New Delhi's trusted bottling experts. Our RO plants produce purified water that conforms to Indian Standard IS:10500, making them ideal for beverage production, bottling, and various industrial applications. Customizable capacities from 100 LPH to 2,000+ LPH.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Raw water passes through a multi-stage pre-treatment system including a sand filter (to remove suspended solids), an activated carbon filter (to remove chlorine and organic matter), and a micron filter (5-10 micron) for fine particle removal. This protects the RO membranes from fouling and damage.
The pre-treated water is pressurized by a high-pressure pump and forced through semi-permeable RO membranes. The membranes reject dissolved salts, minerals, and impurities, producing high-quality permeate (product water) and a reject stream (concentrate). Typical recovery rates range from 55-80% depending on feed water quality.
The purified water passes through a UV sterilizer for disinfection and may be dosed with minerals (remineralization) or pH-adjusted as required. The treated water is stored in a tank and is ready for use in beverage production, bottling, or other industrial applications.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Production Capacity | 100 - 2,000+ Liters / Hour (Customizable) |
| Feed Water TDS | Up to 3,000 mg/L (Brackish Water) |
| Product Water Quality | Conforms to IS:10500 (Drinking Water Standard) |
| Recovery Rate | 55-80% (Depending on Feed Water Quality) |
| Membrane Type | Thin-Film Composite (TFC) Spiral Wound |
| Pre-Treatment | Sand Filter + Activated Carbon Filter + Micron Filter |
| Post-Treatment | UV Sterilizer + Dosing System (Optional) |
| Material Construction | FRP Vessels / Stainless Steel Skid |
| Automation Grade | Semi-Automatic / Fully Automatic with PLC |
| Key Features | Compact Design, Low Maintenance, Energy Efficient, Consistent Water Quality |
Submit your water treatment specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
