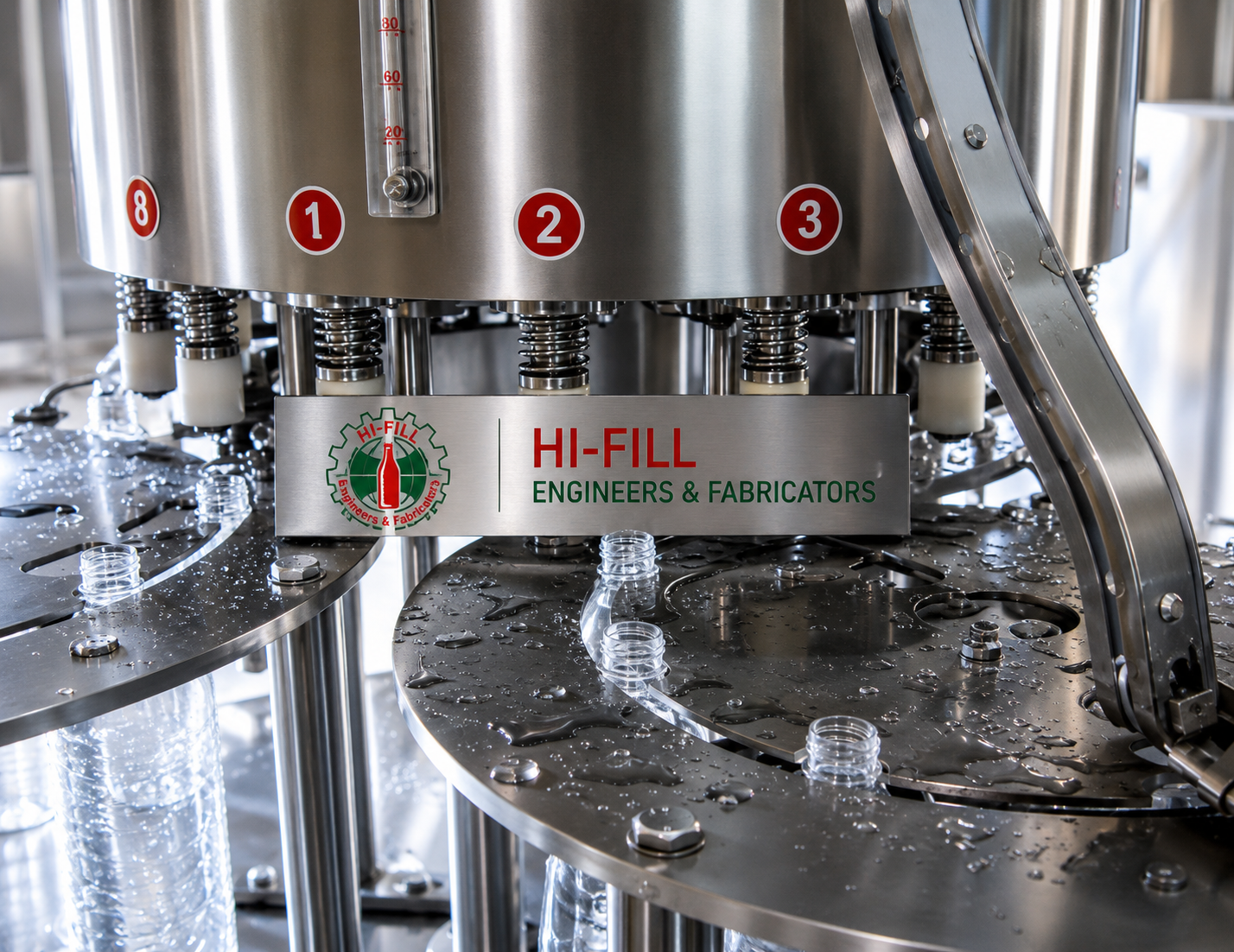

Designed and manufactured by experienced Gravity Filler Machines Manufacturers in Delhi, our precision-engineered gravity filling systems are developed for accurate, efficient, and consistent liquid filling operations. Utilizing advanced gravity-based filling technology, these machines ensure uniform fill volumes, smooth product flow, and reliable performance across various free-flowing liquid applications. Built with robust mechanical design, high-quality components, and minimal maintenance requirements, our gravity filler machines deliver enhanced productivity and operational stability for industries including packaged water, beverages, edible oils, chemicals, and other liquid processing sectors.
Price
₹ 325,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Empty bottles are fed onto the conveyor system and are precisely positioned under the filling nozzles using a bottle indexing or star wheel mechanism, ensuring accurate alignment for filling.
The filling process uses the natural force of gravity. Liquid flows from an overhead tank through a system of valves and nozzles into the bottles. The flow stops automatically when the pre-set fill level is reached, making it ideal for non-carbonated, free-flowing liquids.
Once the filling cycle is complete, the nozzles seal shut to prevent dripping. The filled bottles are then smoothly conveyed to the next stage for capping, labeling, or packaging.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Production Capacity | Up to 6,000 Bottles / Hour |
| Container Size Range | 200ml to 5L (PET/Glass) |
| Machine Dimensions | 2.5m x 1.8m x 2.0m (L x W x H) |
| Machine Weight | 800 kg |
| Material Construction | Stainless Steel (SS 304, Food Grade) |
| Power Supply | 220V / 380V, 50Hz, Single/3-Phase |
| Compliance | CE Certified |
| Automation Grade | Semi-Automatic / Fully Automatic |
| Key Features | Gentle Filling, Precise Volume Control, Easy to Operate, Low Maintenance, Suitable for Thin Liquids |
Submit your bottling specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
Established in 2005, Hi-Fill Engineers & Fabricators is a leading Exporter, Manufacturer, and Supplier of bottling plants and machinery based in New Delhi, India.
We specialize in turnkey solutions for Carbonated soft drinks, Soda bottling, Juice filling, Water bottling, Oil bottling, Beverages, Liquor, and Chemicals.
