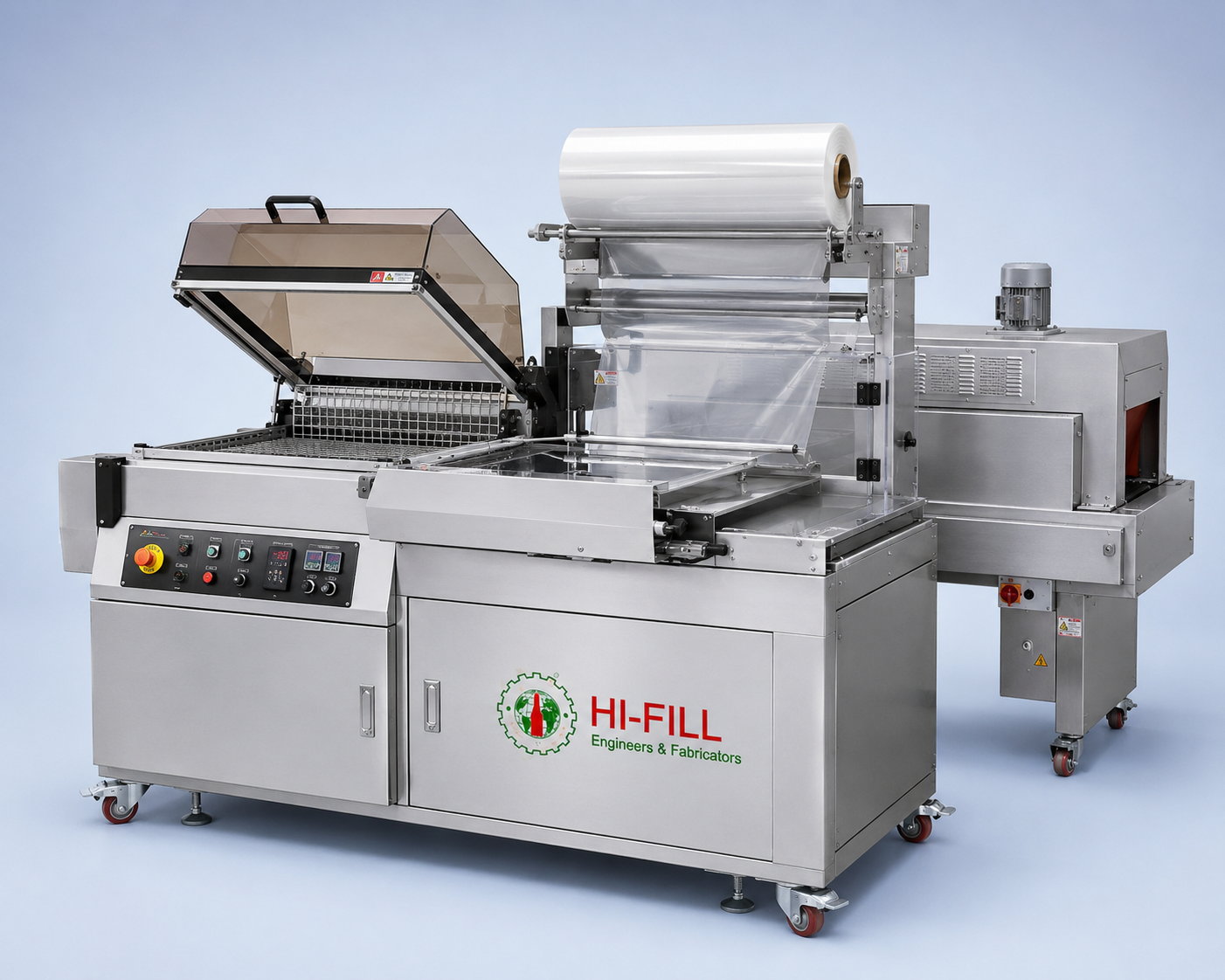

Automatic web sealer shrink wrapping machines for secure, attractive packaging of bottles, cartons, trays, and multi-packs. The system integrates a hot wire or impulse sealer with a hot air shrink tunnel for continuous, high-speed operation. Featuring PLC controls with HMI, stainless steel construction, and precise temperature control. Ideal for beverage, food, pharmaceutical, and consumer goods industries.
Price
₹ 700,000.00
0% GST (Exports) + 18% (Domestic)
MOQ
1 Unit/Units
In Stock / Made to Order
Products (bottles, cartons, trays) are fed onto the conveyor belt. The infeed system ensures consistent spacing and alignment for accurate sealing and wrapping.
The shrink film is unwound from the roll and formed around the product. The web sealer uses heat to seal the film edges, creating a continuous tube. The sealing system (hot wire or constant heat) precisely cuts and seals the film to form individual packages.
The wrapped packages pass through the shrink tunnel. Hot air (heated by electric or gas elements) is circulated around the package, causing the film to shrink tightly and conform to the product shape. Temperature and conveyor speed are precisely controlled.
As the packages exit the shrink tunnel, a cooling section (often with ambient air) solidifies the film. The finished, tightly wrapped packages are discharged from the machine onto the next stage of the production line.
| Parameter | Hi-Fill Standard Rating |
|---|---|
| Machine Type | Automatic Web Sealer with Shrink Tunnel |
| Sealing System | Hot Wire / Constant Heat / Impulse Sealing |
| Shrink Tunnel Type | Hot Air Convection (Electric or Gas Heated) |
| Packaging Speed | 15 - 60 Packs Per Minute (Customizable) |
| Film Material | PVC / POF / PE Shrink Film (Roll Stock) |
| Film Width | Up to 500 mm (Based on Product Size) |
| Product Size Range | Length: 50-400mm, Width: 30-300mm, Height: 10-200mm |
| Construction Material | Stainless Steel 304 / Powder-Coated Steel |
| Control System | PLC with HMI Touch Screen & Temperature Controllers |
| Key Features | Automatic Film Feeding & Cutting, Precise Sealing, Energy-Efficient Shrink Tunnel, Sturdy Construction |
Submit your web sealer shrink wrapping machine specifications directly to Hi-Fill Engineers & Fabricators in New Delhi. Our industrial design team will prepare a technical quotation within 24 hours.
Established in 2005, Hi-Fill Engineers & Fabricators is a leading Exporter, Manufacturer, and Supplier of bottling plants and machinery based in New Delhi, India.
We specialize in turnkey solutions for Carbonated soft drinks, Soda bottling, Juice filling, Water bottling, Oil bottling, Beverages, Liquor, and Chemicals.
